Heawy duty automatic high speed edge banding machine
重型全自动高速封边机
铝蜂窝板材封边工艺
Special edge banding machine for aluminum honeycomb panel
履带压料(选配)
Belt feeding (optional)
PUR自动注胶机(选配)
PUR automatic glue injection machine (optional)

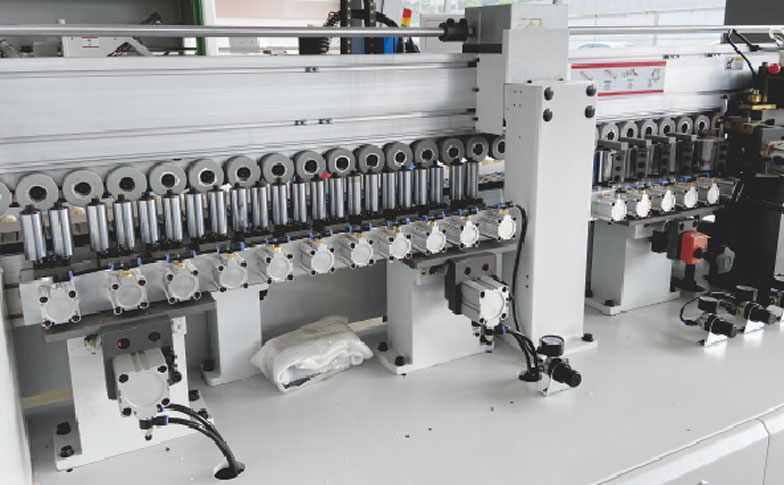

加长压贴机构
Lengthened pressing mechanism

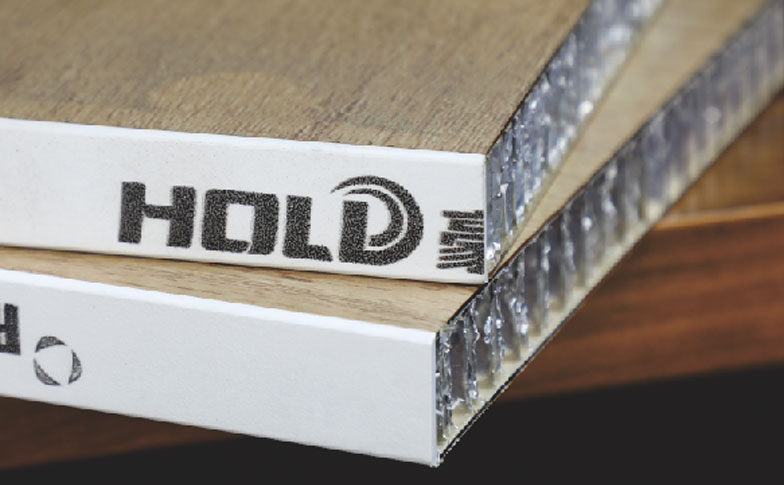

铝蜂窝板样板
Aluminum honeycomb panel template

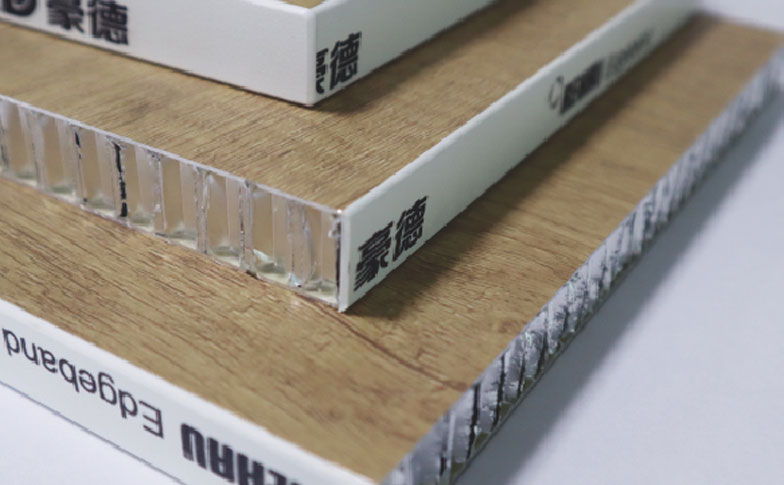

铝蜂窝板样板
Aluminum honeycomb panel template
现场操作视频
Operating video
产品参数
| 设备型号 | HD691JP | HD690J |
|---|
升降 Lifting | 电动升降 Elecric Lifting |
| 总功率(kw) Total power(kw) | 17.72 | 16.25 |
外形尺寸(mm) overall size(mm) | 10200 x 900 x 1700 | 8500 x 900 x 1700 |
| 进给速度(m/min) Edge thickness(mm) | 铝蜂窝板:14 曾通板:14-20-23 dluminum honeycomb panel: 14; rdinary panel: 14-20-23 |
封边带厚度(mm) Max.depth of horizontal drilling head | 1.5-2.0 | 1.5-2.0 |
板料厚度(mm) Panel thickness(mm) | 10-60 | 10-60 |
板料长度(mm) Panel length(mm) | ≥120 | ≥120 |
板料宽度(mm) Panel width(mm) | ≥100 | ≥100 |
| 工作气压(Mpa) Working pressure(Mpa) | 0.6
| 0.6 |
| 最小板材尺寸(mm) Min.panel size(mm) | 120x100 | 120x100 |
注:本司对产品规格及设计细节不断改良更新,上述功能与参数可能有优化改进,请与授权销售单位确认。
The company's product spelt elirs and design detals wil be updated continously, The above specifications subject to change without notice,plerse confirm wth authorized distributor.
